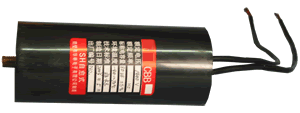

BKMJ Laser capacitor

Features and applications:

•  Circular plastic box, small dimension, light weight, high performance

•  Excellent electric performance, high reliability

•  Applied in power source circuits of laser equipments

Specifications:

•  Standard:Q/MS009-2002

•  Ambient temperature : ― 40 ℃~ +55 ℃

•  Dissipation factor: ≤ 0.0010 ( 100Hz )

•  Insulation resistance: R-C ≥ 1200M Ω µF

•  Withstand voltage: 1.1 ~ 1.5Un(5S)

•  Charge and discharge frequency:3 ~ 300 times/second

Norminal
capaci-
tance
1000V 1400V 1600V 1800V 2000V 2500V 3000V
D ×H D ×H D ×H D ×H D ×H D ×H D ×H
10UF           Φ60 ×120 Φ60 ×120
20UF   Φ50 ×60 Φ50 ×70 Φ55 ×80 Φ60 ×100 Φ60 ×140 Φ60 ×160
30UF   Φ50 ×80 Φ50 ×90 Φ60 ×100 Φ60 ×120 Φ65 ×160 Φ80 ×160
40UF Φ50 ×80 Φ50 ×100 Φ55 ×100 Φ60 ×130 Φ65 ×130 Φ80 ×160 Φ80 ×190
50UF Φ50 ×100 Φ55 ×100 Φ60 ×100 Φ60 ×130 Φ76 ×130 Φ80 ×180 Φ80 ×200
60UF Φ50 ×100 Φ60 ×100 Φ60 ×120 Φ65 ×145 Φ80 ×130 Φ80 ×200 Φ100 ×190
80UF Φ55 ×100 Φ60 ×120 Φ65 ×120 Φ76 ×160 Φ100 ×150 Φ100 ×190 Φ100 ×240
100UF Φ65 ×100 Φ65 ×120 Φ70 ×135 Φ84 ×160 Φ100 ×150 Φ100 ×200 Φ100 ×260
200UF   Φ84 ×150     Φ116 ×240
300UF   Φ100 ×150
400UF   Φ116 ×160
