CBBT Metalized polypropylene film AC capacitor

Features and applications:

Metal box, sealed structure

Excellent self-healing, long time stable operation

Applied in resonant frequency converting power sources in electric railway systems

Specifications:

Standard:Q/MS002-96

Climate category:55/070/21

Capacitance tolerance: ± 5% ;± 10%

Dissipation factor: ≤ 0.004 ( 100Hz )

Insulation resistance: ≥ 5000S

Withstand voltage:1.5Ur

Norminal
capaci-
tance
750Va.c.

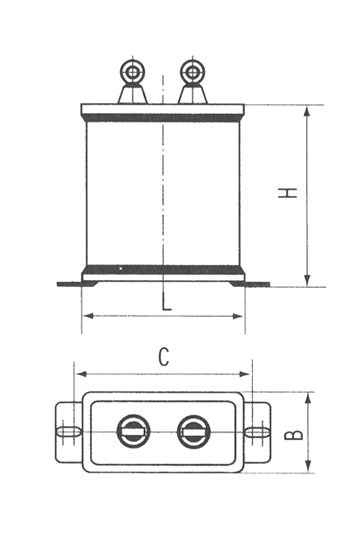

L B H
20UF 130 65 150
40UF 145 105 150
