CBG Metallized polypropylene film track compensation AC capacitor



Features and applications:

•  Polypropylene film as dielectric, evaporated metal layer on the surface of the film as electrodes, excellent self-healing, axial rubber insulation cable as lead-out wires.

•  Applied in non insulation track circuits for compensation

Specifications:

•  Standard:Q/MS011-99

•  Ambient temperature : ― 40 ℃~ 85 ℃

•  Rated voltage:160Vac

•  Rated capacitance: 22µF ~ 100µF

•  Capacitance tolerance: ± 5% ;± 10%

•  Dissipation factor: ≤ 0.005 ( 1KHz )

•  Withstand voltage: 2Ur (2s)

•  Insulation resistance: ≥ 500M Ω

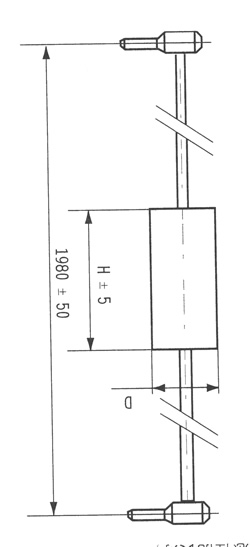

Note: When lead-out wire is of multi-strand copper, the capacitor itself is 100±5mn in length, when lead-out wire is of multi-strand steel, the capacitor itself is 200±5mn in length,.



Norminal
capaci-
tance

160 VAC

L

D

22µF

105

50

33µF

105

50

40µF

140

55

46µF

140

60

50µF

140

60

55µF

155

60

60µF

155

60

70µF

165

65

80µF

165

65

90µF

165

65
