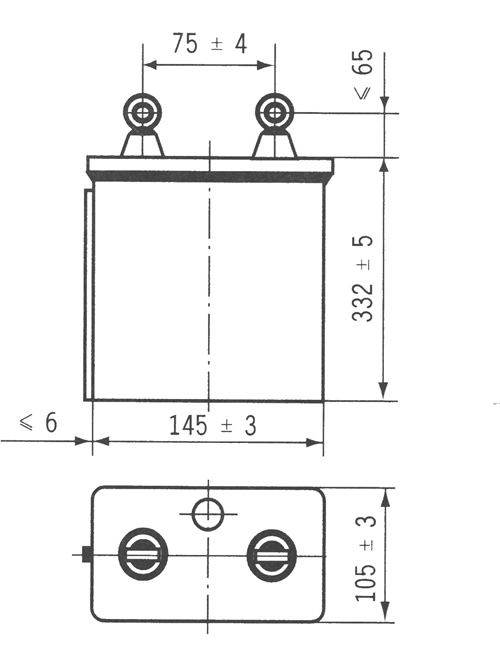

CH69A Compsite dielectric capacitor for electric loccmotves

CH69A Compsite dielectric capacitor for electric loccmotves

Features and Applications:

1. Metal box, sealed with insulation ceramic insulation terminals, non-pollution dry structure, wet proof

2. Withstanding high voltage, high insulation resistance

3. Applied in 50HZ AC circuits

Specifications:

1. Standard: Q/MS010-90

2. Ambient temperature: 55/070/10

3. Rated capacitance: 1.5KVAC

4. Rated voltage: 6uF

5. Capacitance tolerance: ± 5% ;± 10%

6. Dissipation factor: ≤ 0.006

7. Insulation resistance: ≥ 2000S

8. Withstand voltage:2.15Un
