CBB65 Metallized polypropylene film capacitor

CBB65 Metallized polypropylene film capacitor

Features and applications:

• Aluminum column box, small dimension, light weight

• Excellent electrical performances, low dissipation, excellent self healing

• Pressure explosive proof apparatus inside

• Applied in 400 VAC and 600 VAC power systems, specially suitable for air conditioner compressors

• Applied in starting and running of single phase 50 Hz AC motors, or used as AC filtering in AC power source systems.

Specifications:

• Standard: GB3667-97

• Climate category: 40/070/21

• Capacitance tolerance: ± 5%

• Dissipation factor: ≤ 0.002 （ 100Hz ）

• Withstand voltage: 1.75Un (2s)

• Insulation resistance: ≥ 12000s

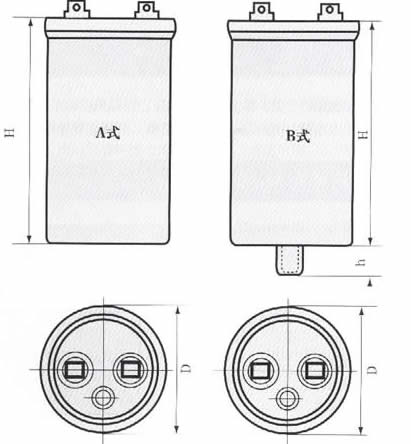

Norminal capaci- tance	450V_A.C.		400V_A.C.
Norminal capaci- tance	D	H	D	H
12	50	81
15	50	81
20	50	116
23	50	116
25	50	116
29	50	130
35			50	130
40			55	130
45			55	130

CBB65D

Norminal capaci- tance	450V_A.C.
Norminal capaci- tance	D1	H2
25	45	98
30	45	113
35	45	123
40	50	123
45	50	123
50	50	133
55	55	123
60	55	133
65	60	133
70	60	133

CBB65B

Norminal capaci- tance	400V_A.C.		450V_A.C.
Norminal capaci- tance	D	H	D	H
10			42	82
12			42	82
15			50	82
20			50	118
23			50	118
25			50	118
29			50	132
35	50	132
40	55	132
45	55	132
50	60	132

	450V_A.C.			400V_A.C.
		D	H		D	H
1.7	34	50	100	12.54	50	100
2	40	50	100	14.7	50	135
2.5	50	50	135	18.4	50	135
3.3	66	55	135	24.2	55	135
5	100	65	135	36.7	65	135
6.6	132	65	185	48.5	65	185
10	200	65	260	73.5	65	260

CBB65 capacitor
